Intallation

• BlackVue Tape kit installation Guide.

A. For Customers Replacing Dashcam Tape Due to Weakened Adhesion on an Existing Vehicle #

Step 1. Disconnect the Dashcam and Cables #

• Unplug all power, GPS, and video cables from the front and rear cameras.

Step 2. Remove the Existing Mount Tape #

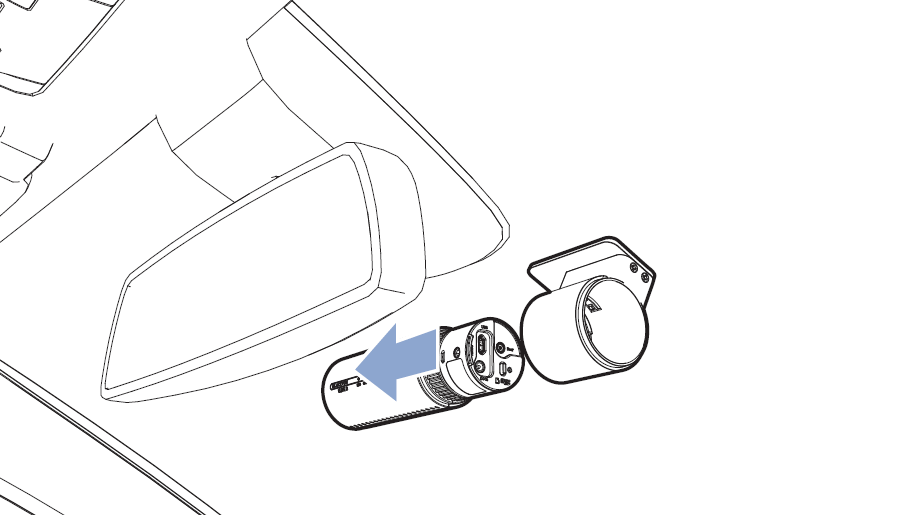

• Detach the camera from the mount.

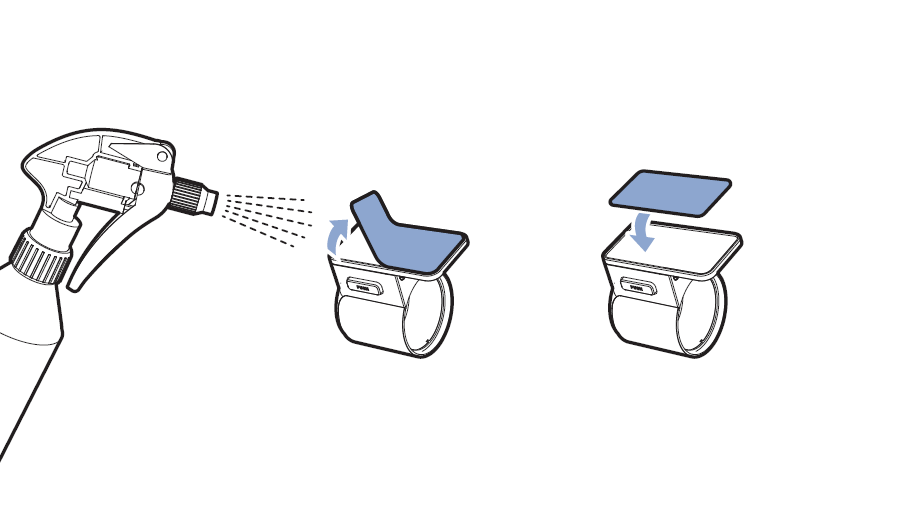

• Spray water or alcohol continuously around the mount tape to weaken the adhesive, then remove it and

         Attach the provided mount tape to the existing front and rear camera mounts.

• Use the same procedure to remove the rear camera’s mount tape.

Step 3. Reattach to the Vehicle #

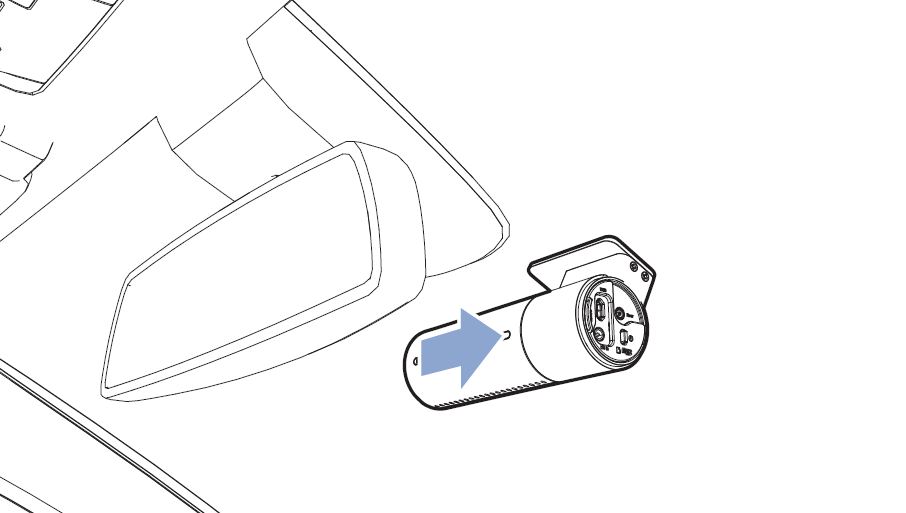

• Insert the camera into the mount with the newly applied tape.

• Position the dashcam (with new tape) at the center of the windshield and align it horizontally, then press to secure it.
  (We recommend installing within the wiper coverage area.)

Step 4. Finalize and Test #

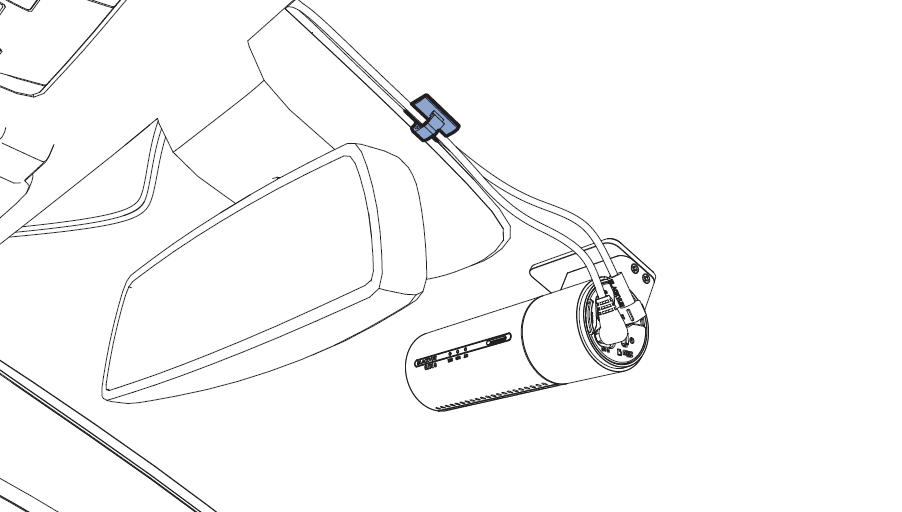

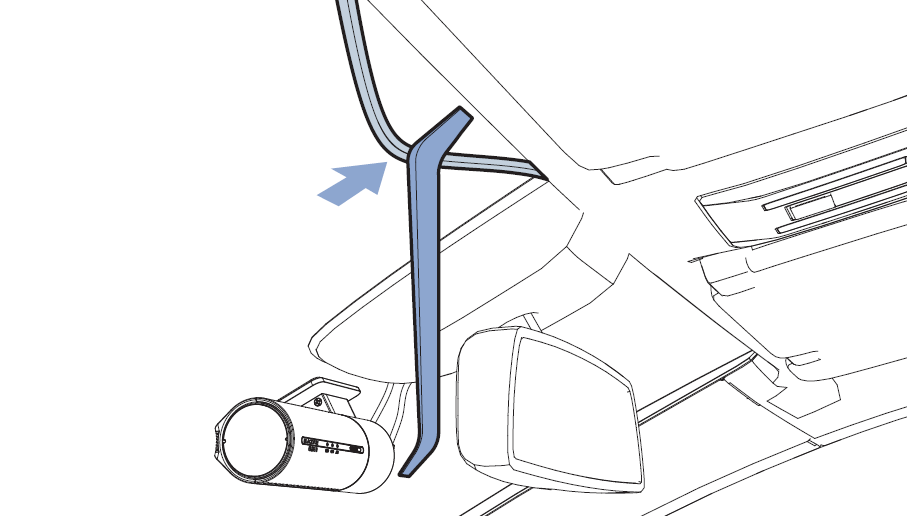

• Use the included removal tool and cable clips to organize wiring.

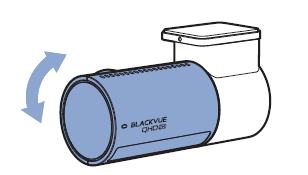

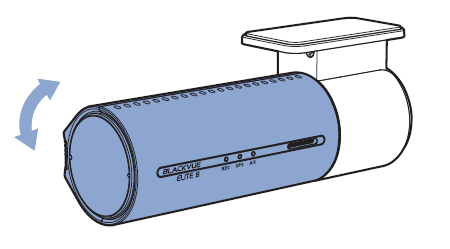

• Clean the camera lens and adjust the camera angle as shown in the reference image for optimal recording position.



                       Front Camera                                                             Rear Camera



B. For Customers Installing the Dashcam on a Second or New Vehicle #

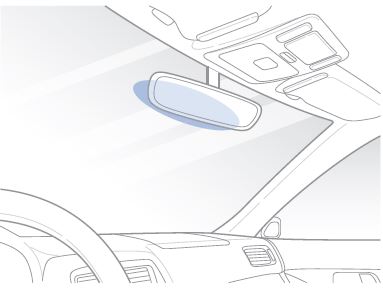

Step 1. Select Mounting Position on the New Vehicle #

• Choose mounting positions for both front and rear cameras.
  (Center of the windshield and within the wiper area is recommended.)

Step 2. Remove Tape from the Existing Dashcam Mounts #

• Spray water or alcohol around the mount tape to weaken the adhesive and remove it and

             Attach the provided mount tape to the front and rear mounts.

• The more liquid used (within reason), the easier the removal.

• Apply the same process to the rear camera mount.

Step 3. Attach to the New Vehicle #

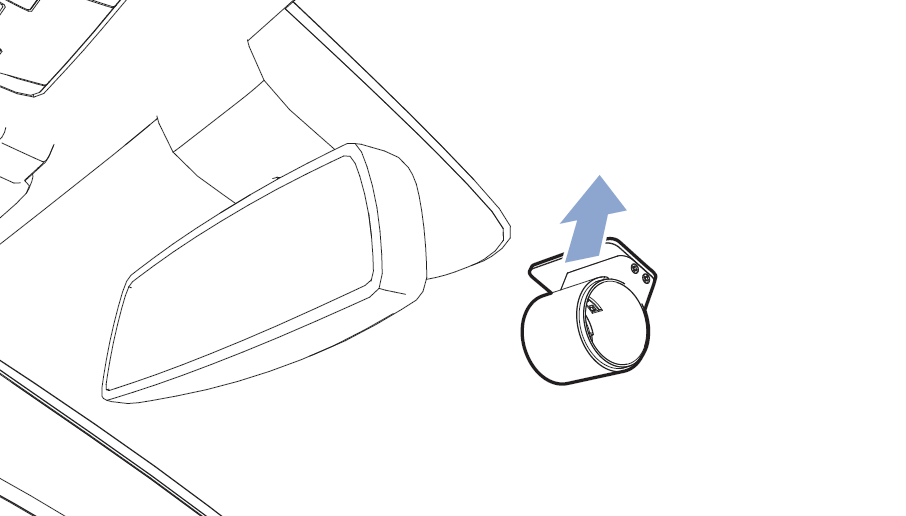

• Align the dashcam (with newly applied mount tape) to the center of the windshield and press to secure it.

• Leave the mount untouched for 12 hours to ensure strong adhesion.

• Attach the existing camera body to the newly mounted bracket.



Step 4. Finalize and Test #

• Use the included removal tool and cable clips to organize wiring.



• Clean the lens and adjust the camera angle for the best recording position.



                        Front Camera                                                       Rear Camera

#

#

⚠️ Installation Precautions #

• Clean the windshield surface thoroughly before applying the mount.

• Allow the adhesive to cure for at least 12 hours before driving.

• Do not forcefully insert or remove the camera body to avoid damaging the mounting parts.
