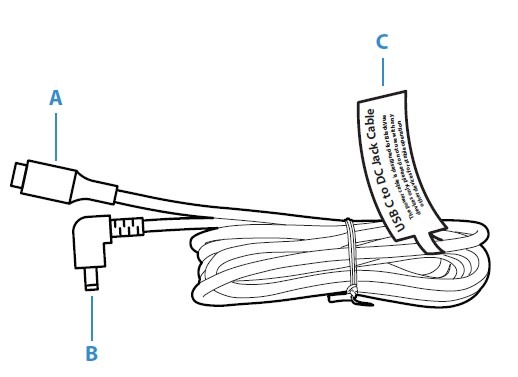

The following diagrams explain each part of the USB-C PD3.0 power cable.
USB-C PD3.0 Power Cable #
A) Type – C 12 Pin with fast charging PD 3.0 protocol chip (Connect to the USB-C port on your vehicle)
B) DC 3.5 x 1.1 3 Pole Plug (Connect to the BlackVue Front Camera)
C) Waterproof warning label
